12V Low Temperature
Battery Packs

Overview

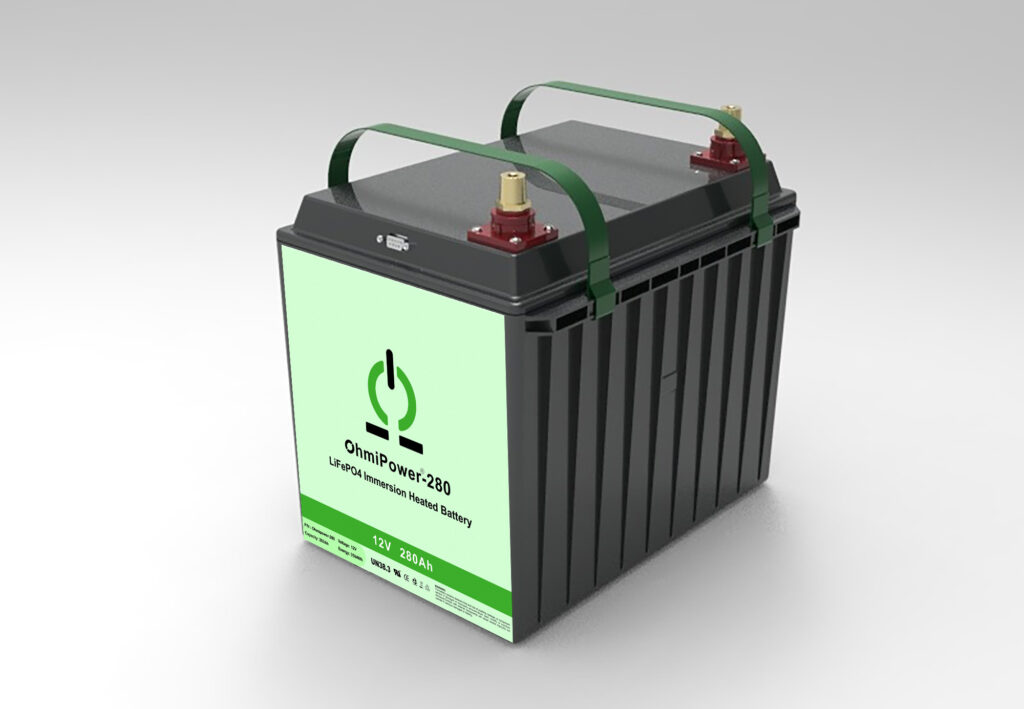

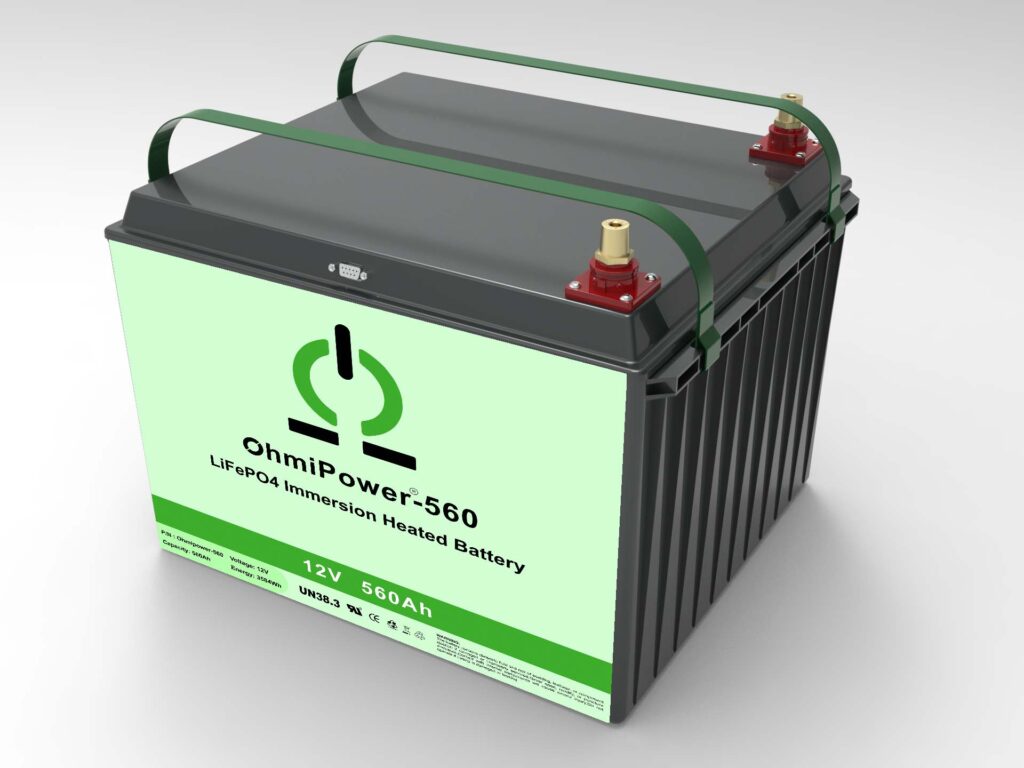

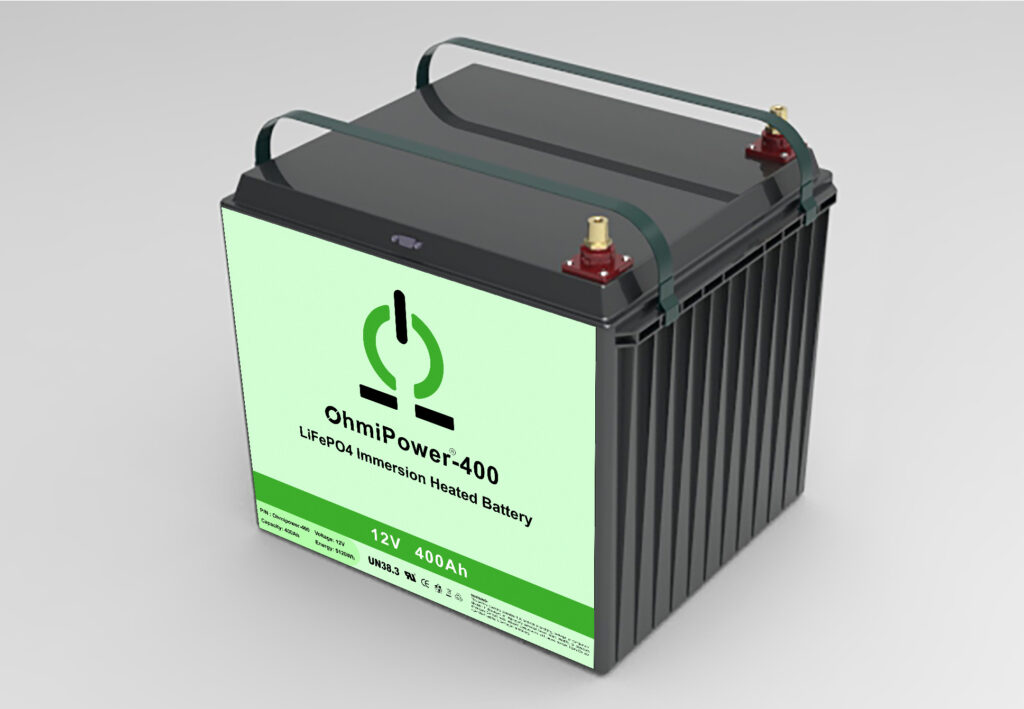

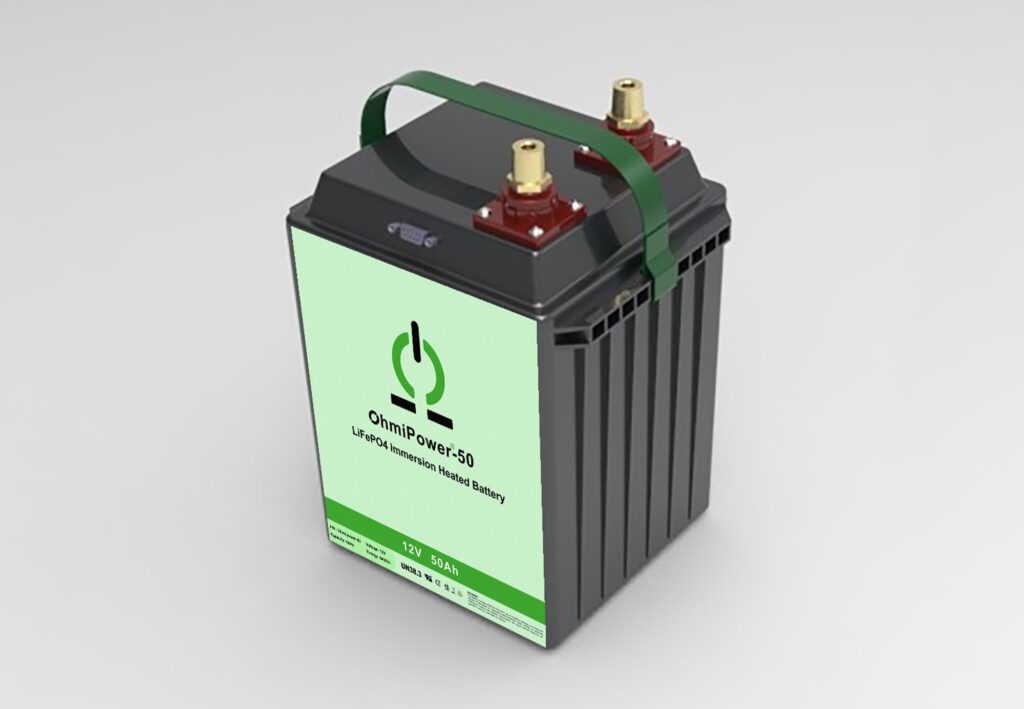

The 12V immersion heated battery pack is designed for low temperature using Lithium Iron Phosphate (LFP) cells to deliver safe, stable, and reliable power for a wide range of applications. The LFP cells are immersed in a dielectric fluid, which provides uniform temperature distribution throughout the battery pack, enhancing performance and extending service life. The dielectric fluid also significantly reduces the risk of thermal runaway, ensuring superior operational safety. This battery pack features a smart BMS with active balancing and an immersion heating system for smooth operation in environments as cold as -40°C. Built for durability and safety, it is ideal for electric vehicles, solar energy systems, industrial equipment, marine applications, and backup power solutions.

Key Features

Core Technology

  • Full dielectric immersion heating for uniform temperature distribution (±2°C)
  • Prismatic LPF and LTO cells submerged in thermally conductive fluid

Performance & Lifespan

  •  3,000+ cycles at 100% Depth of Discharge (DoD)
  • Ultra-low internal resistance (<0.5mΩ) for stable power delivery
  • Flat voltage discharge curve (12.8V‒13.2V) under load

Safety & Reliability

  •  Zero thermal runaway risk (inherently stable LiFePOchemistry)
  • No toxic components: Lead-free, acid-free, rare-earth-free
  • Zero degassing during operation

Smart Management

  •  Active balancing BMS (>1.5A current) for cell longevity
  • Real-time diagnostics: Per-cell voltage/temperature monitoring
  • State-of-Charge (SoC) accuracy: ±1%

Environmental Robustness

  •  Operational range: -40°C to +55°C
  • Supports high-pulse discharge (e.g., 1000A cold-cranking)

Certifications & Compliance

  • UN 38.3, CE, UKCA (battery pack), UL1642 (cells), IEC62133
